SMD2835 DC12V 50cm IP65 Waterproof Rigid LED Strip – 36 LEDs, 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm

SMD2835 DC12V 50cm IP65 Waterproof Rigid LED Strip – 36 LEDs, 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm

SMD2835 DC12V 50cm IP65 Waterproof Rigid LED Strip – 36 LEDs, 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm

SMD2835 DC12V 50cm IP65 Waterproof Rigid LED Strip – 36 LEDs, 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm

LED Density Illustration

LED Density Comparison 2835

About this item

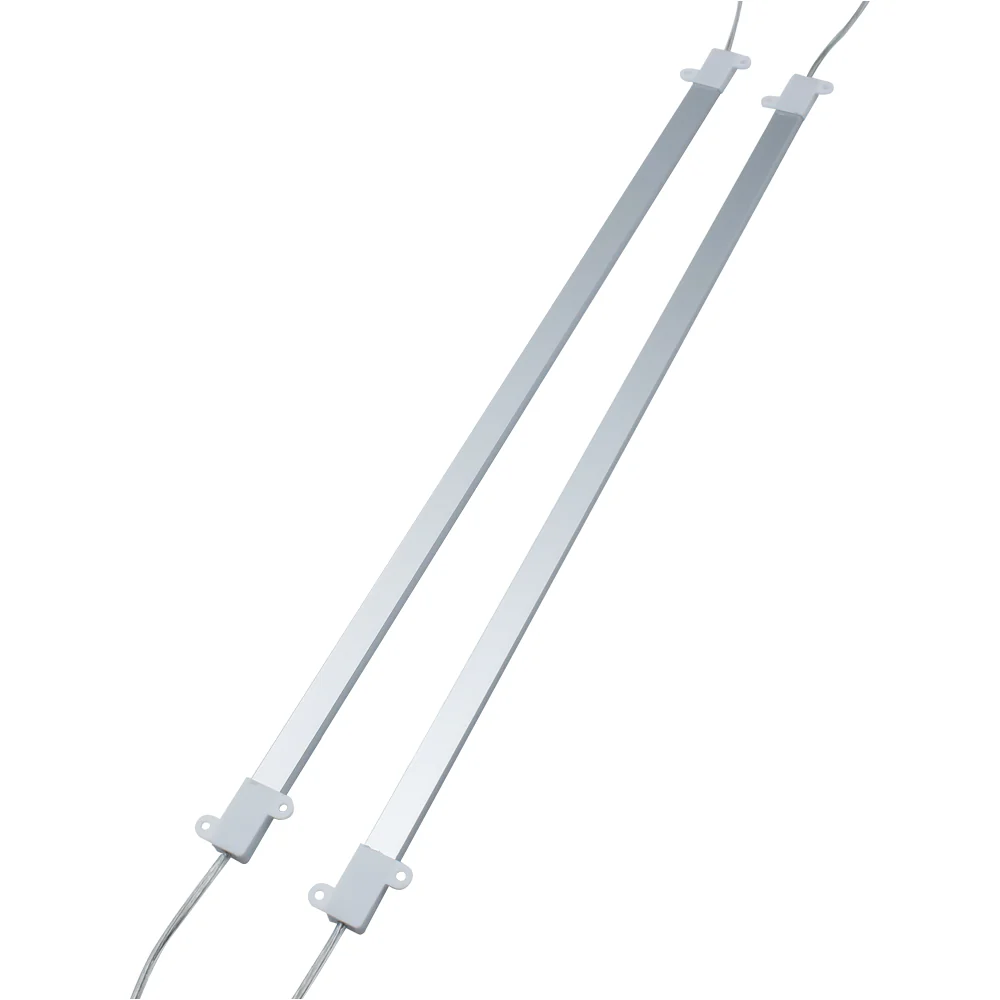

Rigid LED strip with SMD2835 LEDs, 36 LEDs per 50cm length.
Available wavelengths: 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm.
Operates on DC 12V with a 120° beam angle.
Waterproof rating: IP65, suitable for indoor and protected outdoor applications.
Aluminum PCB for rigidity and better heat dissipation.
Emits visible red or infrared light, suitable for a variety of specialized applications.

Technical Specification

Specification	Value
Wattage	4 W/pc
Voltage	12V DC
Beam Angle	120°
Dimming	Yes
LED Type	SMD2835
Strip Section	3 LEDs per 1.93 inch
WxH	14×7 mm (excluding end cap)
LED Quantity	36 LEDs/pc
Length Available	500 mm (customized length available)
Available Color	635 nm, 660–670 nm, 730–735 nm, 810 nm, 850 nm, 940 nm
Protection Grade	Waterproof IP65
Finish Color	Silver

Package Included

Version	Package Included
635nm	50cm rigid LED strip, 1 × Terminal Block
660–670nm	50cm rigid LED strip, 1 × Terminal Block
730–735nm	50cm rigid LED strip, 1 × Terminal Block
810nm	50cm rigid LED strip, 1 × Terminal Block
850nm	50cm rigid LED strip, 1 × Terminal Block
940nm	50cm rigid LED strip, 1 × Terminal Block

Order & Logistics

Lead Time: Ships within 1–3 business days, occasionally 3–6 business days.
Packing: Cardboard box.
Shipping: From local warehouse (3–7 days) if available, or from HQ ( 9–18 days standard or 5–9 days express).

Other Features

Feature	Details
Weight	150 g/pc
Mounting	End cap with mounting hole; can be fixed using included screws

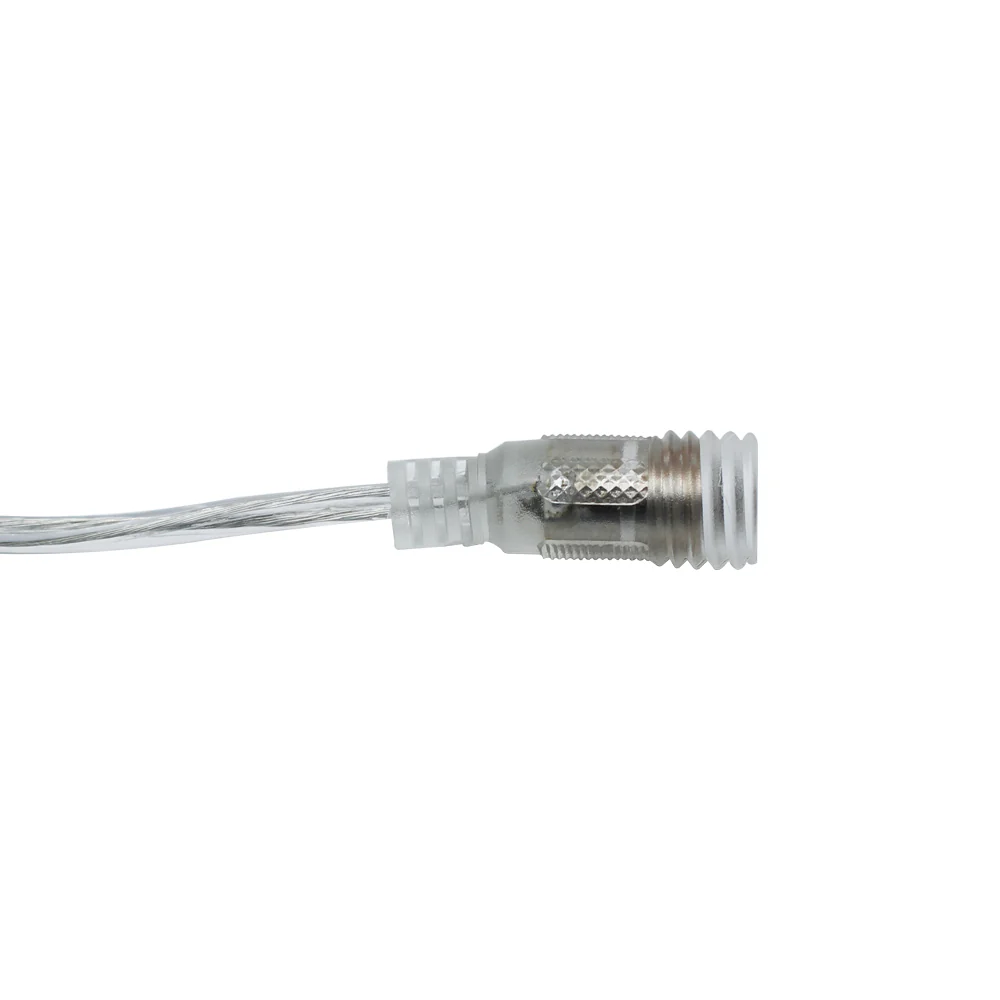

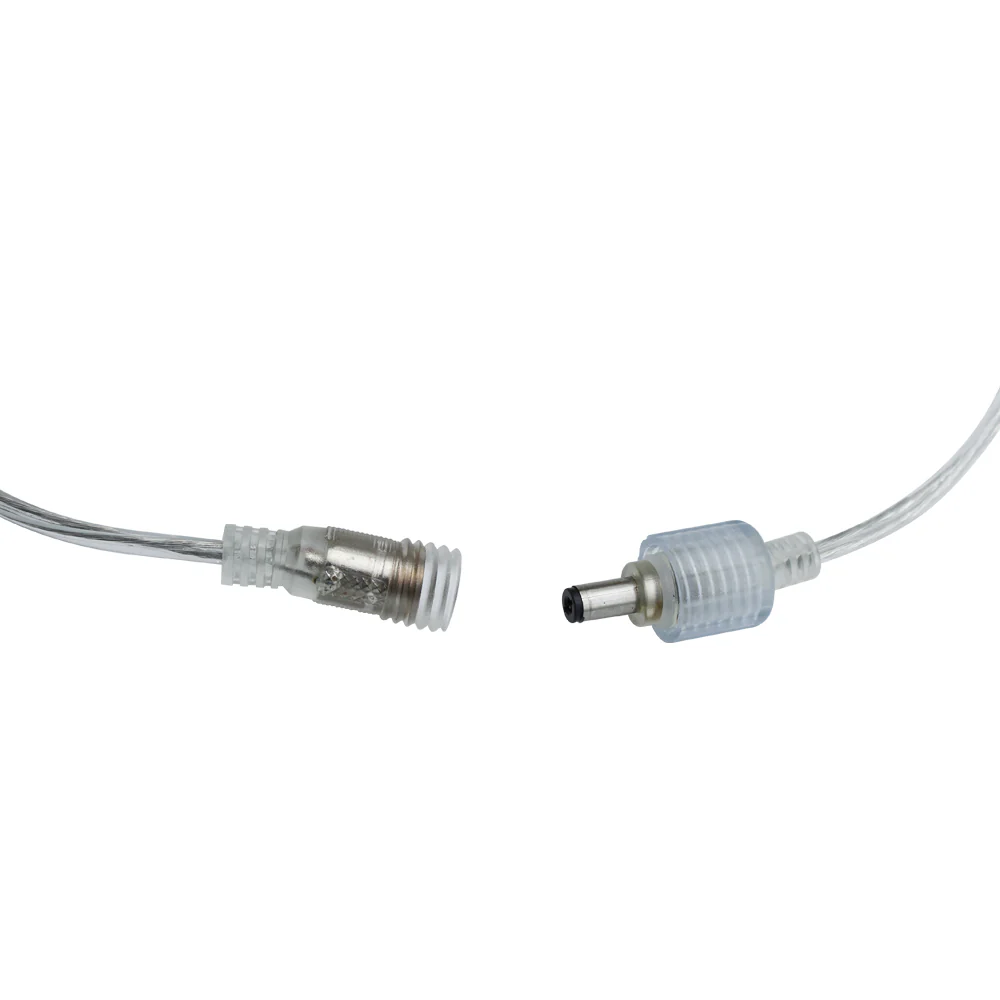

Accessories	DC5.5×2.1 mm plug connector soldered at both ends (one female, one male)
Lead	V+ and V- (polarity sensitive)

Type of LED & Waterproof IP Grade

Waterproof IP65: Surface covered with clear silicone, protects from sprayed water from all directions.

Installation Tips

Always disconnect power supply before connecting LED strips.
Do not bend rigid strips to avoid damaging the PCB.
Do not connect LED strips directly to 120V AC power.
Apply power to test LED strips before mounting.

Applications

Indicator lighting
Therapy and wellness lighting
Plant growth supplemental lighting
Industrial and inspection lighting

Select Wavelength

Select Length

From $3.88

Original: $12.95

-70%

SMD2835 DC12V 50cm IP65 Waterproof Rigid LED Strip – 36 LEDs, 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm—

$12.95

$3.88

More Images

SMD2835 DC12V 50cm IP65 Waterproof Rigid LED Strip – 36 LEDs, 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm - Image 2

SMD2835 DC12V 50cm IP65 Waterproof Rigid LED Strip – 36 LEDs, 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm - Image 3

SMD2835 DC12V 50cm IP65 Waterproof Rigid LED Strip – 36 LEDs, 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm - Image 4

SMD2835 DC12V 50cm IP65 Waterproof Rigid LED Strip – 36 LEDs, 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm - Image 5

SMD2835 DC12V 50cm IP65 Waterproof Rigid LED Strip – 36 LEDs, 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm - Image 6

SMD2835 DC12V 50cm IP65 Waterproof Rigid LED Strip – 36 LEDs, 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm

SMD2835 DC12V 50cm IP65 Waterproof Rigid LED Strip – 36 LEDs, 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm

LED Density Illustration

LED Density Comparison 2835

About this item

Rigid LED strip with SMD2835 LEDs, 36 LEDs per 50cm length.
Available wavelengths: 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm.
Operates on DC 12V with a 120° beam angle.
Waterproof rating: IP65, suitable for indoor and protected outdoor applications.
Aluminum PCB for rigidity and better heat dissipation.
Emits visible red or infrared light, suitable for a variety of specialized applications.

Technical Specification

Specification	Value
Wattage	4 W/pc
Voltage	12V DC
Beam Angle	120°
Dimming	Yes
LED Type	SMD2835
Strip Section	3 LEDs per 1.93 inch
WxH	14×7 mm (excluding end cap)
LED Quantity	36 LEDs/pc
Length Available	500 mm (customized length available)
Available Color	635 nm, 660–670 nm, 730–735 nm, 810 nm, 850 nm, 940 nm
Protection Grade	Waterproof IP65
Finish Color	Silver

Package Included

Version	Package Included
635nm	50cm rigid LED strip, 1 × Terminal Block
660–670nm	50cm rigid LED strip, 1 × Terminal Block
730–735nm	50cm rigid LED strip, 1 × Terminal Block
810nm	50cm rigid LED strip, 1 × Terminal Block
850nm	50cm rigid LED strip, 1 × Terminal Block
940nm	50cm rigid LED strip, 1 × Terminal Block

Order & Logistics

Lead Time: Ships within 1–3 business days, occasionally 3–6 business days.
Packing: Cardboard box.
Shipping: From local warehouse (3–7 days) if available, or from HQ ( 9–18 days standard or 5–9 days express).

Other Features

Feature	Details
Weight	150 g/pc
Mounting	End cap with mounting hole; can be fixed using included screws
Accessories	DC5.5×2.1 mm plug connector soldered at both ends (one female, one male)
Lead	V+ and V- (polarity sensitive)

Type of LED & Waterproof IP Grade

Waterproof IP65: Surface covered with clear silicone, protects from sprayed water from all directions.

Installation Tips

Always disconnect power supply before connecting LED strips.
Do not bend rigid strips to avoid damaging the PCB.
Do not connect LED strips directly to 120V AC power.
Apply power to test LED strips before mounting.

Applications

Indicator lighting
Therapy and wellness lighting
Plant growth supplemental lighting
Industrial and inspection lighting

Product Information

Shipping & Returns

Description

SMD2835 DC12V 50cm IP65 Waterproof Rigid LED Strip – 36 LEDs, 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm

LED Density Illustration

LED Density Comparison 2835

About this item

Rigid LED strip with SMD2835 LEDs, 36 LEDs per 50cm length.
Available wavelengths: 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm.
Operates on DC 12V with a 120° beam angle.
Waterproof rating: IP65, suitable for indoor and protected outdoor applications.
Aluminum PCB for rigidity and better heat dissipation.
Emits visible red or infrared light, suitable for a variety of specialized applications.

Technical Specification

Specification	Value
Wattage	4 W/pc
Voltage	12V DC
Beam Angle	120°
Dimming	Yes
LED Type	SMD2835
Strip Section	3 LEDs per 1.93 inch
WxH	14×7 mm (excluding end cap)
LED Quantity	36 LEDs/pc
Length Available	500 mm (customized length available)
Available Color	635 nm, 660–670 nm, 730–735 nm, 810 nm, 850 nm, 940 nm
Protection Grade	Waterproof IP65
Finish Color	Silver

Package Included

Version	Package Included
635nm	50cm rigid LED strip, 1 × Terminal Block
660–670nm	50cm rigid LED strip, 1 × Terminal Block
730–735nm	50cm rigid LED strip, 1 × Terminal Block
810nm	50cm rigid LED strip, 1 × Terminal Block
850nm	50cm rigid LED strip, 1 × Terminal Block
940nm	50cm rigid LED strip, 1 × Terminal Block

Order & Logistics

Lead Time: Ships within 1–3 business days, occasionally 3–6 business days.
Packing: Cardboard box.
Shipping: From local warehouse (3–7 days) if available, or from HQ ( 9–18 days standard or 5–9 days express).

Other Features

Feature	Details
Weight	150 g/pc
Mounting	End cap with mounting hole; can be fixed using included screws
Accessories	DC5.5×2.1 mm plug connector soldered at both ends (one female, one male)
Lead	V+ and V- (polarity sensitive)

Type of LED & Waterproof IP Grade

Waterproof IP65: Surface covered with clear silicone, protects from sprayed water from all directions.

Installation Tips

Always disconnect power supply before connecting LED strips.
Do not bend rigid strips to avoid damaging the PCB.
Do not connect LED strips directly to 120V AC power.
Apply power to test LED strips before mounting.

Applications

Indicator lighting
Therapy and wellness lighting
Plant growth supplemental lighting
Industrial and inspection lighting
