OF-1FT Series Outdoor Flexible LED Module – P2.54 / P3.81 / P5.08 / P6.927 / P10.16 | 1ft × 1ft Panel | Dual-Side IP65 Waterproof | Front & Rear Maintenance | 5000nits | Nationstar LEDs

About this item

• Durable & Reliable – Dual-side IP65 waterproof with silicone sealing (front & back) for stable outdoor performance; redesigned silicone base keeps power/data interfaces protected from water.
• High Precision Visuals – Multiple pixel pitches P2.54 / P3.81 / P5.08 / P6.927 / P10.16 deliver smooth, vivid imagery with accurate color.
• Bright & Long-lasting – 5000 nits brightness with auto-brightness adjustment and low lumen depreciation for consistent performance over time.
• Wide Viewing Angle – 160° (H) / 160° (V) ensures uniform color and brightness across the screen.
• Flexible Installation – Seamless splicing; bendable tiles (~150°) support concave/convex shapes and custom sizes. Requires receiving card, sending card, control software, and DC 5V power supply.

Package Included

Version	Package Included
Single Panel Set	1 × IF-1FT Flexible LED Module (Choose P2.54 / P3.81 / P5.08 / P6.927 / P10.16) 1 × Power Box 1 × Receiver Card Necessary Data & Power Cables

Order & Logistics

• Lead Time: Typically ships within 1–3 business days.
• Packing: Cardboard box with protective packaging.
• Shipping: Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）

Protection & Design Features

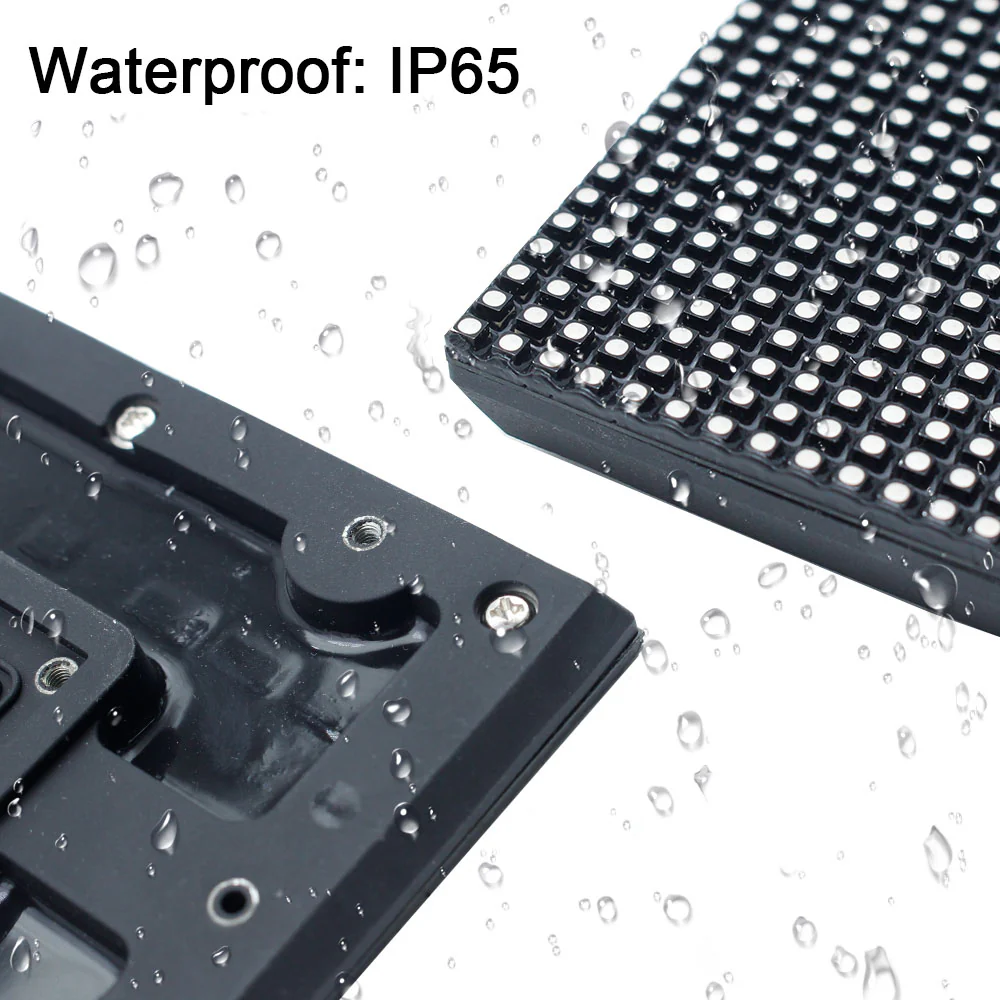

• IP65 Waterproof – Silicone encapsulation on front and back; sealed power/data ports for enhanced weather resistance.

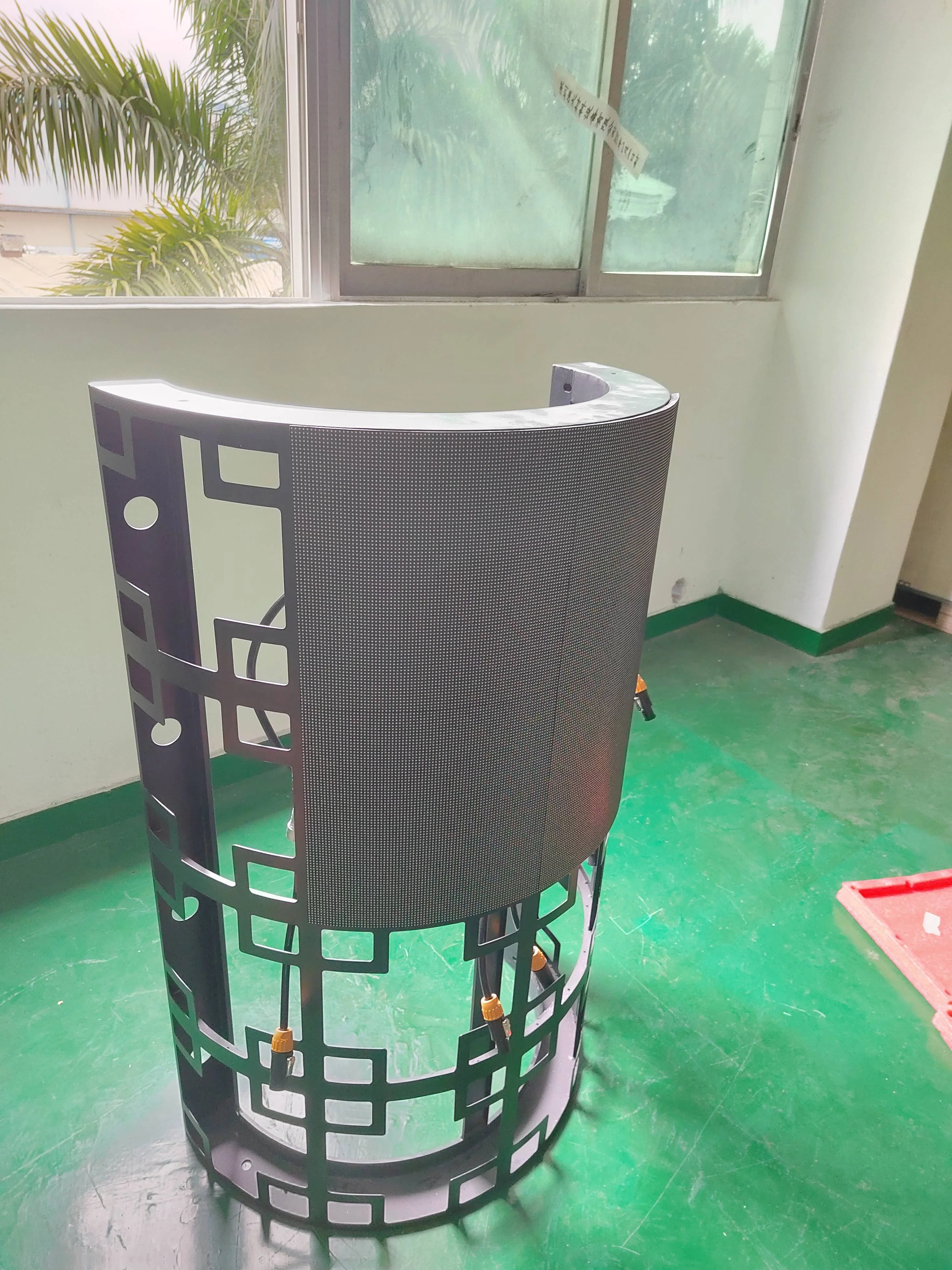

• Flexible module construction supports creative curved or cylindrical displays.

Installation Tips

• Always disconnect power before installing or servicing the module.
• Ensure correct polarity for power/data connections.
• Avoid bending or twisting the PCB beyond rated tolerance (~150°).

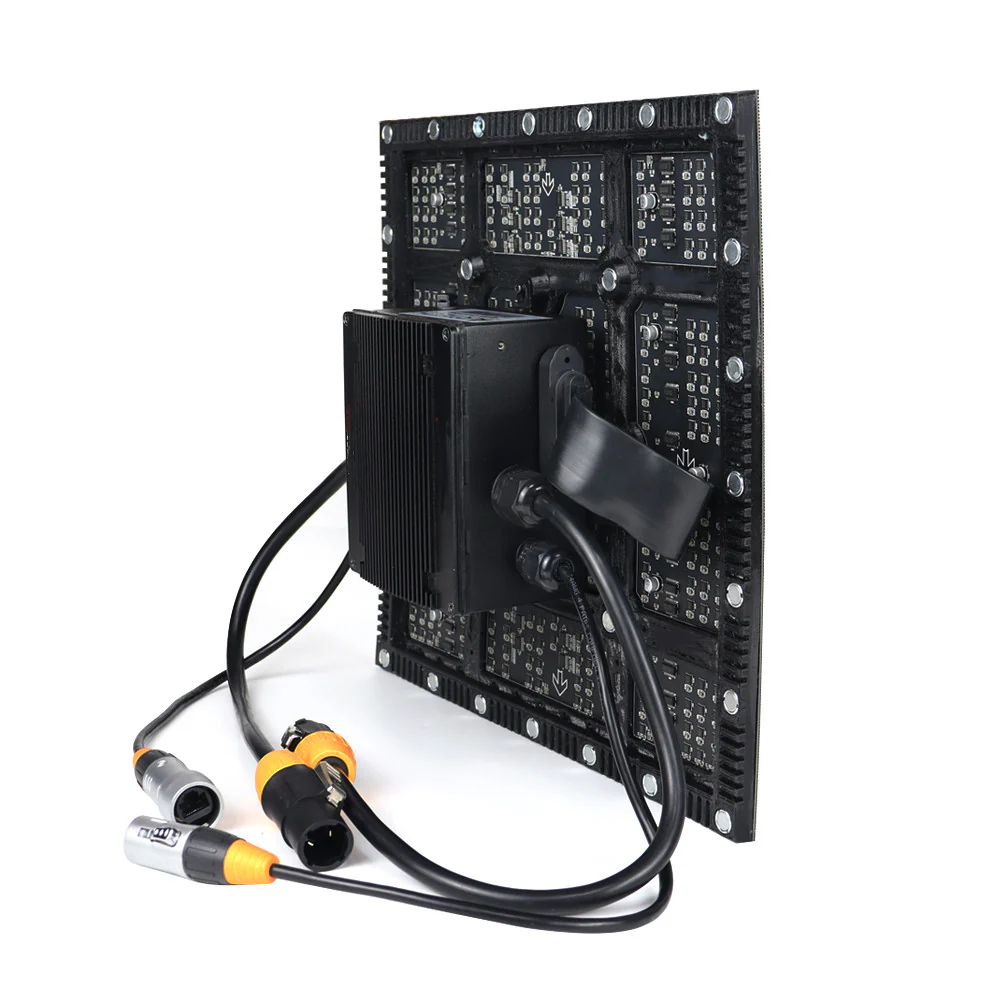

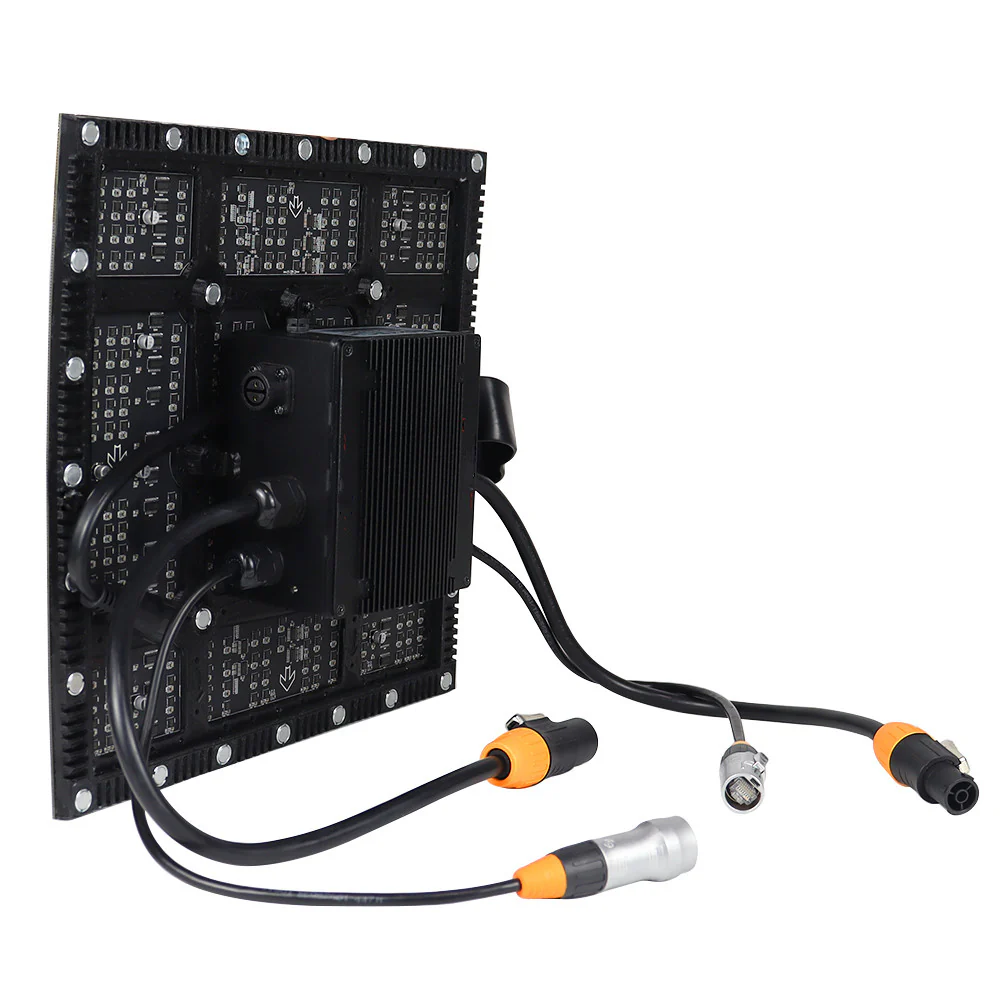

• This series of modules is equipped with a control and power supply box (with a built-in receiving card and 5V power supply). Power and data input and output are connected via aviation plug cables. Each unit is a complete display unit. It can be put into operation simply by using a sending card or control box.

Technical Specifications

Specification	Value

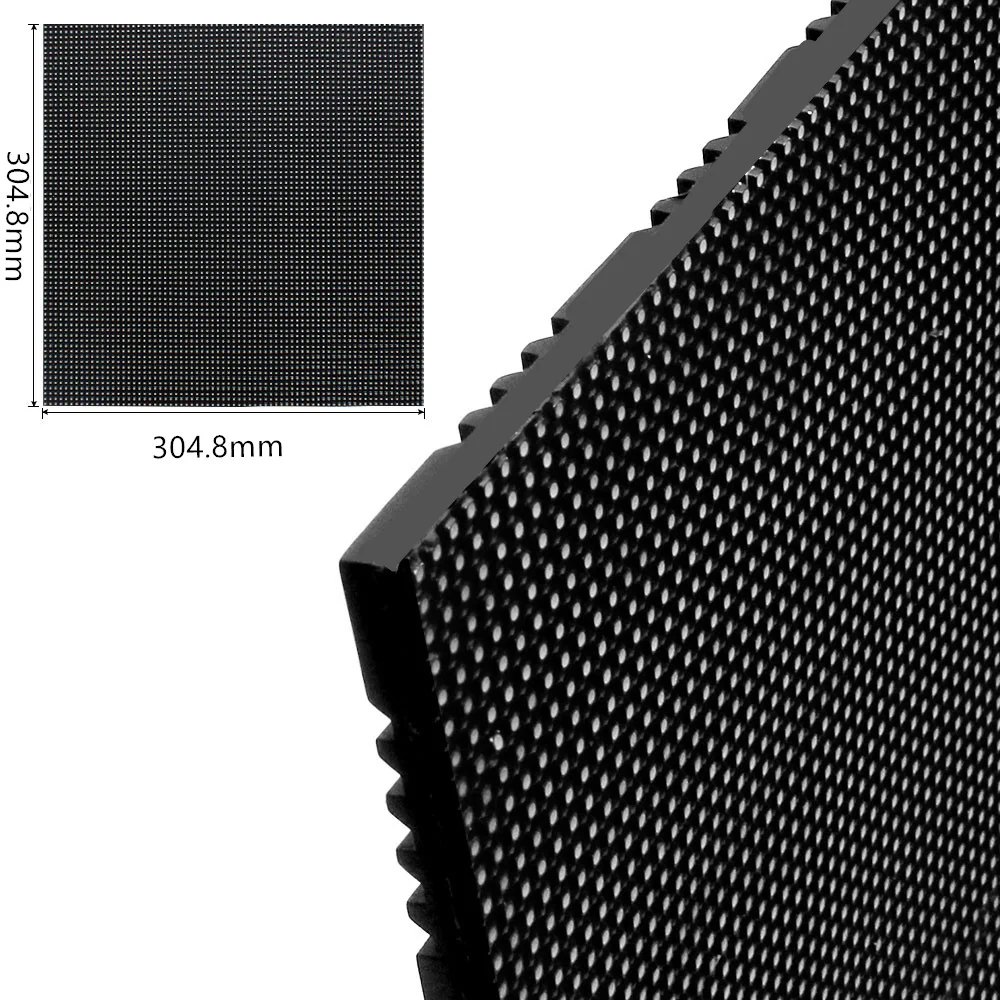

Module size	304.8 × 304.8 mm (1 ft × 1 ft)
Pixel pitch	P2.54 / P3.81 / P5.08 / P6.927 / P10.16

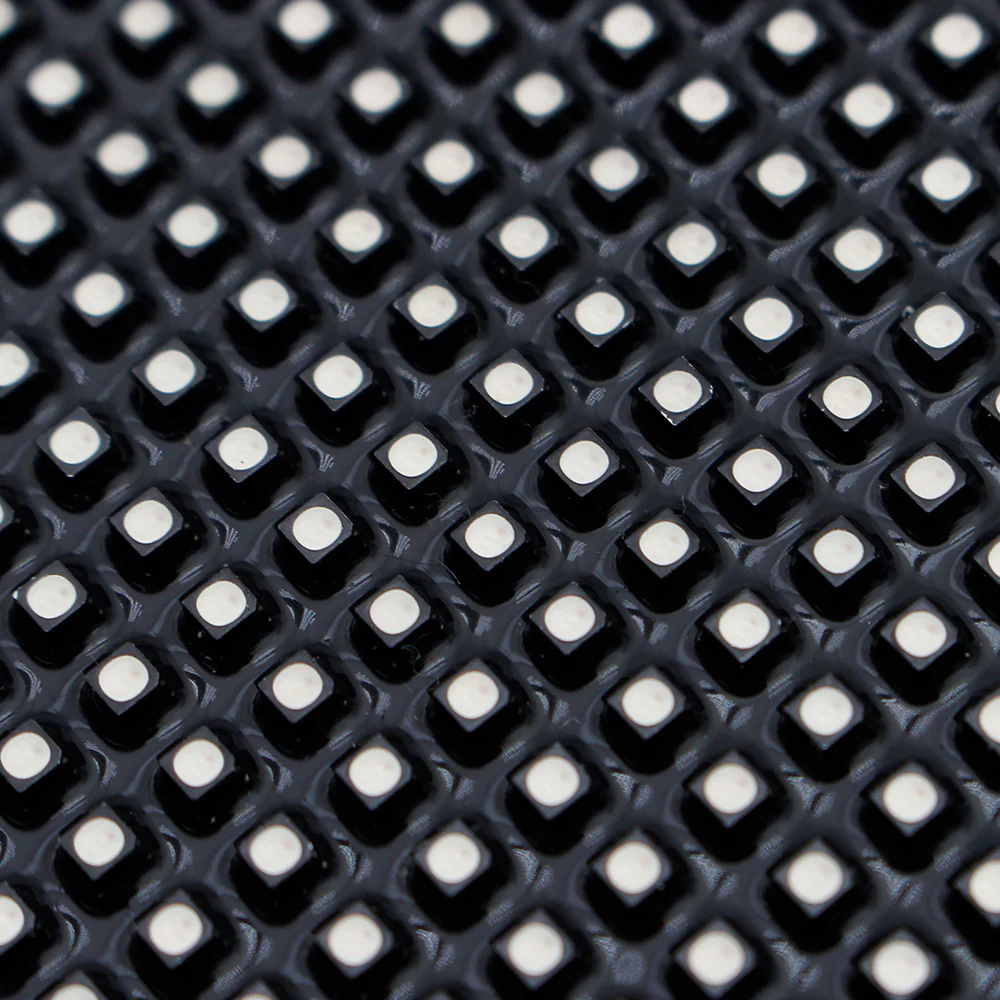

LED type	SMD1921 (P2.54 / P3.81 / P5.08); SMD3535 (P6.927 / P10.16)
Brightness	5000 nits
Scan rate	P2.54: 1/24  |  P3.81: 1/16  |  P5.08: 1/6  |  P6.927: 1/5  |  P10.16: 1/2
Viewing angle	160° (H) / 160° (V)
Input voltage	DC 5V

Applications

• Outdoor: Billboards, stadiums, event stages, transportation hubs.
• Creative: Curved displays, cylindrical screens, artistic installations.
