30×20mm Quick Install Neon Light Housing - S3020 With-Edge / Edge-Free Silicone LED Channel System | Max Strip Width ≤25 mm | Top-Emitting Silicone Neon Cover | for Commercial Lighting, Retail Store Lighting & Shop Window Lighting | 164FT/50M

Package Included

Version	Package Included
Option: With-Edge / Compatible LED: ≤25mm Strip / Pack Size: 164FT (50M × 1)	50m with-edge silicone LED channel tube (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included)
Option: With-Edge / Compatible LED: ≤25mm Strip / Pack Size: 16.4FT (5M × 10)	10 × 5m with-edge silicone LED channel tubes (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included)
Option: Edge-Free / Compatible LED: ≤25mm Strip / Pack Size: 164FT (50M × 1)	50m edge-free silicone LED channel tube (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included)
Option: Edge-Free / Compatible LED: ≤25mm Strip / Pack Size: 16.4FT (5M × 10)	10 × 5m edge-free silicone LED channel tubes (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included)

About this item

• Designed for ≤25mm LED Strip – S3020 silicone housing supports LED strips up to 25mm wide, suitable for wider linear lighting installations.
• Two Structure Options – Available in With-Edge and Edge-Free versions to suit different mounting and appearance requirements.
• Top-Emitting Design – Direct top light output helps create smooth and uniform illumination for commercial lighting, retail store lighting, and shop window lighting.
• Wide Emitting Surface – Broad top diffuser area helps create a continuous neon-style lighting effect for decorative and commercial projects.
• Quick Install Structure – The profile is designed for convenient strip insertion and efficient handling during long-run installation work.
• Flexible Silicone Material – Soft, bendable, and cuttable construction adapts to both straight and curved installation paths.
• Wide Lighting Applications – Suitable for commercial lighting, retail store lighting, shop window lighting, decorative linear lighting, and interior accent lighting.

Order & Logistics

• Lead Time: Ships directly from headquarters. Handling time 3–5 business days
• Packing: Cardboard box
• Shipping:

  This series enjoys our Free Shipping Policy for orders over $399.

Key Specifications

• Series: S3020
• Available Options: With-Edge / Edge-Free

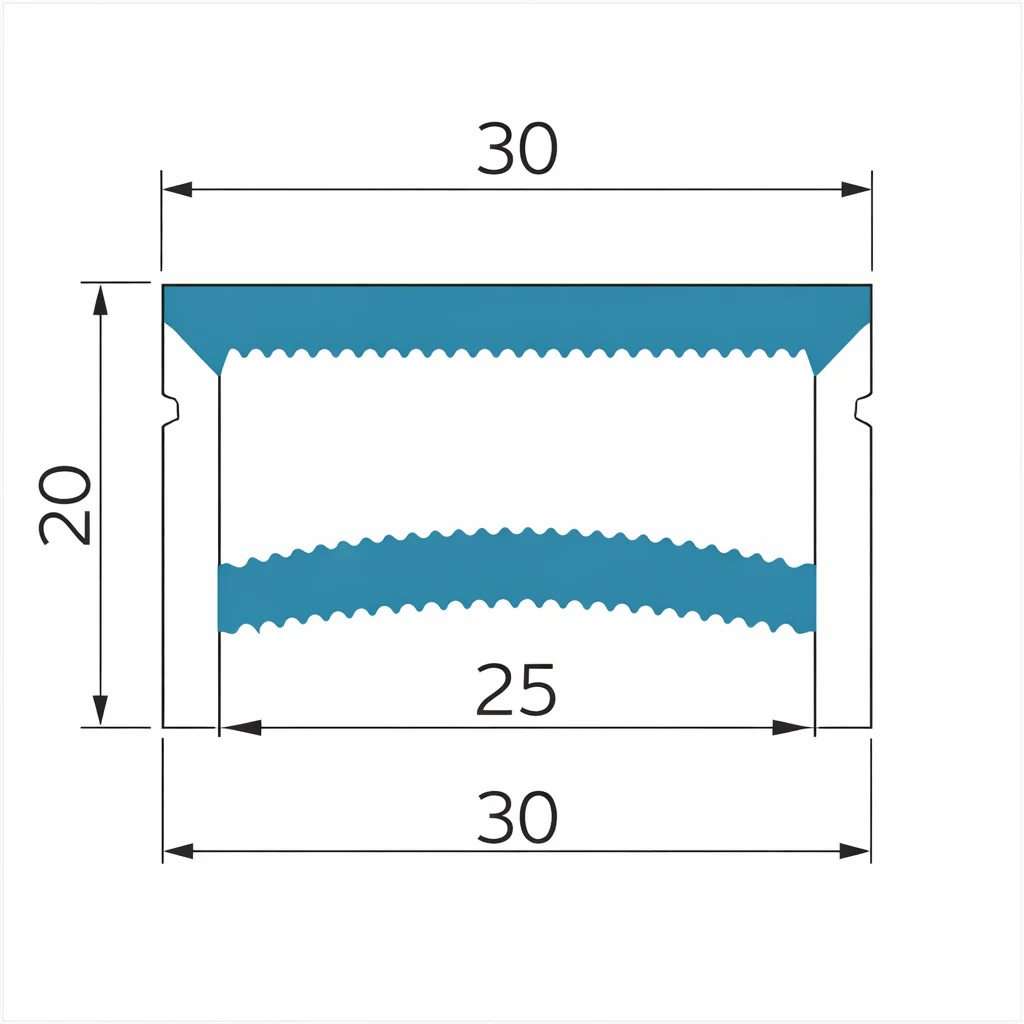

• Outer Dimensions: 30 × 20 mm (W × H)

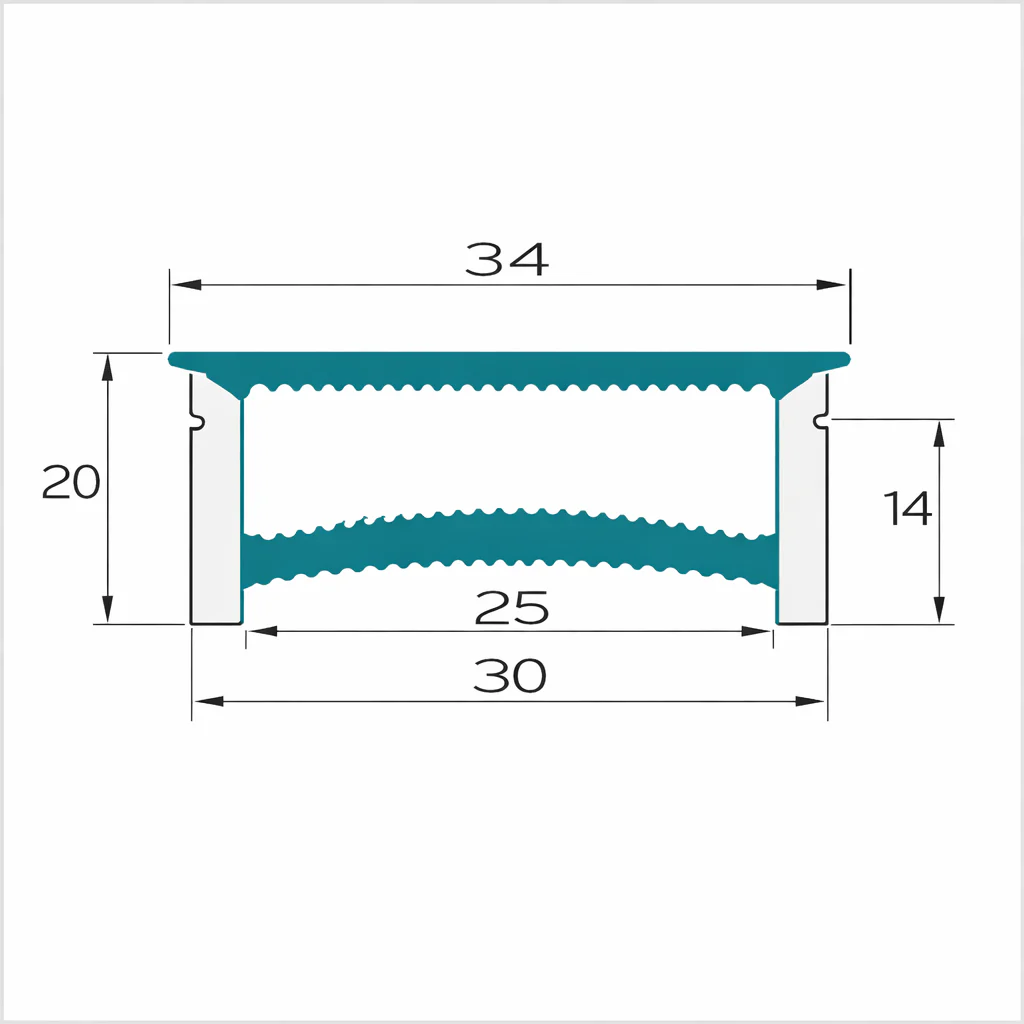

• Top Width: 34 mm (With-Edge) / 30 mm (Edge-Free)
• Bottom Width: 30 mm
• Inner Width: 25 mm
• Inner Height: 14 mm (With-Edge)
• Compatible LED Strip Width: ≤ 25 mm
• Lighting Direction: Top Emitting
• Material: Silicone

Usage Notes / Installation Tips

• Confirm LED strip width does not exceed 25mm before installation.
• Select With-Edge or Edge-Free version based on mounting requirements.
• Check the profile dimensions before arranging the installation channel or mounting position.
• For long installations, two-person operation is recommended for better efficiency.
• Seal both ends with end caps if needed to improve durability.
• LED strip and power supply are not included.

Technical Specifications

Applications

• Commercial lighting
• Retail store lighting
• Shop window lighting
• Decorative linear lighting
• Interior accent lighting
