30×20mm Quick Install Neon Light Housing - S3020-B With-Edge / Edge-Free Silicone LED Channel System | Max Strip Width ≤25 mm | Double-Chamber Top-Emitting Neon Diffuser | for Linear Architectural Lighting & Facade Lighting | 164FT/50M
30×20mm Quick Install Neon Light Housing - S3020-B With-Edge / Edge-Free Silicone LED Channel System | Max Strip Width ≤25 mm | Double-Chamber Top-Emitting Neon Diffuser | for Linear Architectural Lighting & Facade Lighting | 164FT/50M
30×20mm Quick Install Neon Light Housing - S3020-B With-Edge / Edge-Free Silicone LED Channel System | Max Strip Width ≤25 mm | Double-Chamber Top-Emitting Neon Diffuser | for Linear Architectural Lighting & Facade Lighting | 164FT/50M
Package Included
| Version | Package Included |
| Option: With-Edge / Compatible LED: ≤25mm Strip / Pack Size: 164FT (50M × 1) |
50m with-edge silicone LED channel tube (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included) |
| Option: With-Edge / Compatible LED: ≤25mm Strip / Pack Size: 16.4FT (5M × 10) | 10 × 5m with-edge silicone LED channel tubes (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included) |
| Option: Edge-Free / Compatible LED: ≤25mm Strip / Pack Size: 164FT (50M × 1) |
50m edge-free silicone LED channel tube (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included) |
| Option: Edge-Free / Compatible LED: ≤25mm Strip / Pack Size: 16.4FT (5M × 10) | 10 × 5m edge-free silicone LED channel tubes (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included) |
About this item
- Designed for ≤25mm LED Strip – S3020-B silicone housing supports LED strips up to 25mm wide, suitable for wider linear lighting installations.
- Two Structure Options – Available in With-Edge and Edge-Free versions to suit different mounting and appearance requirements.
- Double-Chamber Structure – Dual internal chamber design supports stable strip placement and defined top-emitting light output.
- Top-Emitting Design – Direct top light output helps create smooth and uniform illumination for linear architectural lighting and facade lighting.
- Wide Diffuser Surface – Broad emitting area helps form a continuous neon-style lighting effect for decorative and commercial projects.
- Flexible Silicone Material – Soft, bendable, and cuttable construction adapts to both straight and curved installation paths.
- Wide Lighting Applications – Suitable for linear architectural lighting, facade lighting, decorative linear lighting, and commercial ambient lighting.
Order & Logistics
- Lead Time: Ships directly from headquarters. Handling time 3–5 business days
- Packing: Cardboard box
- Shipping:
This series enjoys our Free Shipping Policy for orders over $399.

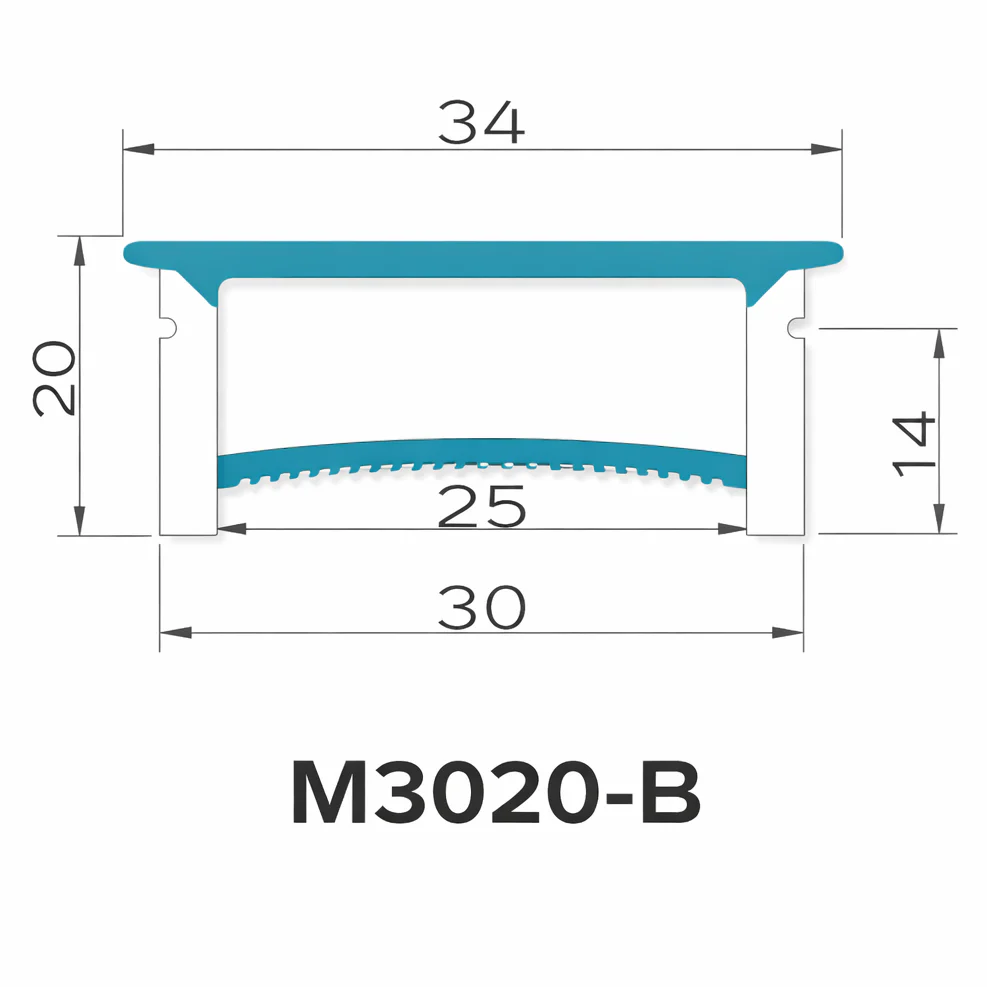

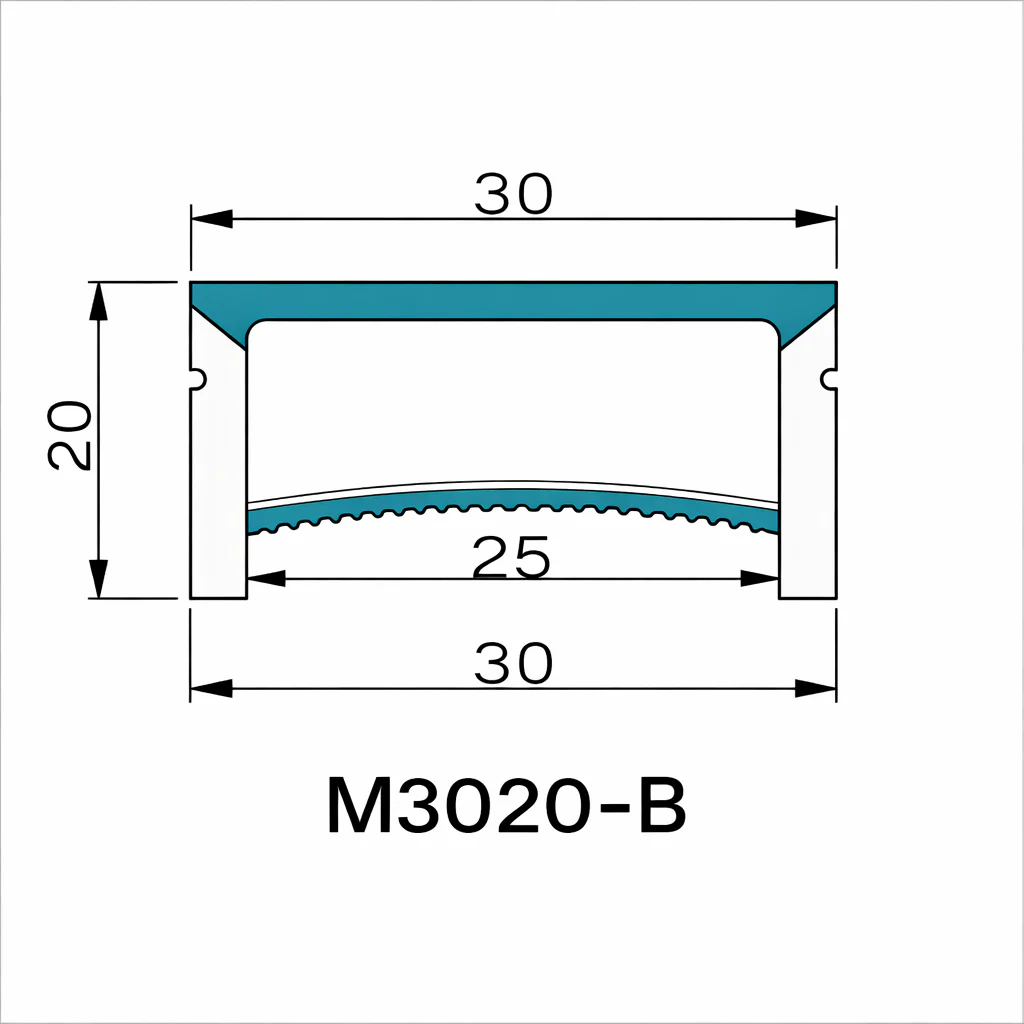

Key Specifications
- Series: S3020-B
- Available Options: With-Edge / Edge-Free
- Outer Dimensions: 30 × 20 mm (W × H)
- Top Width: 34 mm (With-Edge) / 30 mm (Edge-Free)
- Bottom Width: 30 mm
- Inner Width: 25 mm
- Inner Height: 14 mm (With-Edge)
- Compatible LED Strip Width: ≤ 25 mm
- Lighting Direction: Top Emitting
- Structure: Double-Chamber Silicone Design
- Material: Silicone
Usage Notes / Installation Tips
- Confirm LED strip width does not exceed 25mm before installation.
- Select With-Edge or Edge-Free version based on mounting requirements.
- Use the pull cord to guide the LED strip through the housing smoothly.
- For long installations, two-person operation is recommended for better efficiency.
- Seal both ends with end caps if needed to improve durability.
- LED strip and power supply are not included.
Technical Specifications
| Specification | S3020-B With-Edge | S3020-B Edge-Free |
| Model | S3020-B With-Edge | S3020-B Edge-Free |
| Bottom Width | 30 mm | 30 mm |
| Outer Height | 20 mm | 20 mm |
| Top Width | 34 mm | 30 mm |
| Inner Width | 25 mm | 25 mm |
| Inner Height | 14 mm | — |
| Compatible LED Strip Width | ≤ 25 mm | ≤ 25 mm |
| Structure | Double-Chamber | Double-Chamber |
| Material | Silicone | Silicone |
Applications
- Linear architectural lighting
- Facade lighting
- Decorative linear lighting
- Commercial ambient lighting
- Interior accent lighting
Select Option Values
Select Pack Size
From $127.18
Original: $423.95
-70%30×20mm Quick Install Neon Light Housing - S3020-B With-Edge / Edge-Free Silicone LED Channel System | Max Strip Width ≤25 mm | Double-Chamber Top-Emitting Neon Diffuser | for Linear Architectural Lighting & Facade Lighting | 164FT/50M—
$423.95
$127.18More Images
30×20mm Quick Install Neon Light Housing - S3020-B With-Edge / Edge-Free Silicone LED Channel System | Max Strip Width ≤25 mm | Double-Chamber Top-Emitting Neon Diffuser | for Linear Architectural Lighting & Facade Lighting | 164FT/50M
30×20mm Quick Install Neon Light Housing - S3020-B With-Edge / Edge-Free Silicone LED Channel System | Max Strip Width ≤25 mm | Double-Chamber Top-Emitting Neon Diffuser | for Linear Architectural Lighting & Facade Lighting | 164FT/50M
Package Included
| Version | Package Included |
| Option: With-Edge / Compatible LED: ≤25mm Strip / Pack Size: 164FT (50M × 1) |
50m with-edge silicone LED channel tube (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included) |
| Option: With-Edge / Compatible LED: ≤25mm Strip / Pack Size: 16.4FT (5M × 10) | 10 × 5m with-edge silicone LED channel tubes (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included) |
| Option: Edge-Free / Compatible LED: ≤25mm Strip / Pack Size: 164FT (50M × 1) |
50m edge-free silicone LED channel tube (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included) |
| Option: Edge-Free / Compatible LED: ≤25mm Strip / Pack Size: 16.4FT (5M × 10) | 10 × 5m edge-free silicone LED channel tubes (cuttable) 100 × end caps 150 × mounting clips 150 × screws (LED strip not included) |
About this item
- Designed for ≤25mm LED Strip – S3020-B silicone housing supports LED strips up to 25mm wide, suitable for wider linear lighting installations.
- Two Structure Options – Available in With-Edge and Edge-Free versions to suit different mounting and appearance requirements.
- Double-Chamber Structure – Dual internal chamber design supports stable strip placement and defined top-emitting light output.
- Top-Emitting Design – Direct top light output helps create smooth and uniform illumination for linear architectural lighting and facade lighting.
- Wide Diffuser Surface – Broad emitting area helps form a continuous neon-style lighting effect for decorative and commercial projects.
- Flexible Silicone Material – Soft, bendable, and cuttable construction adapts to both straight and curved installation paths.
- Wide Lighting Applications – Suitable for linear architectural lighting, facade lighting, decorative linear lighting, and commercial ambient lighting.
Order & Logistics
- Lead Time: Ships directly from headquarters. Handling time 3–5 business days
- Packing: Cardboard box
- Shipping:
This series enjoys our Free Shipping Policy for orders over $399.
Key Specifications
- Series: S3020-B
- Available Options: With-Edge / Edge-Free
- Outer Dimensions: 30 × 20 mm (W × H)
- Top Width: 34 mm (With-Edge) / 30 mm (Edge-Free)
- Bottom Width: 30 mm
- Inner Width: 25 mm
- Inner Height: 14 mm (With-Edge)
- Compatible LED Strip Width: ≤ 25 mm
- Lighting Direction: Top Emitting
- Structure: Double-Chamber Silicone Design
- Material: Silicone
Usage Notes / Installation Tips
- Confirm LED strip width does not exceed 25mm before installation.
- Select With-Edge or Edge-Free version based on mounting requirements.
- Use the pull cord to guide the LED strip through the housing smoothly.
- For long installations, two-person operation is recommended for better efficiency.
- Seal both ends with end caps if needed to improve durability.
- LED strip and power supply are not included.
Technical Specifications
| Specification | S3020-B With-Edge | S3020-B Edge-Free |
| Model | S3020-B With-Edge | S3020-B Edge-Free |
| Bottom Width | 30 mm | 30 mm |
| Outer Height | 20 mm | 20 mm |
| Top Width | 34 mm | 30 mm |
| Inner Width | 25 mm | 25 mm |
| Inner Height | 14 mm | — |
| Compatible LED Strip Width | ≤ 25 mm | ≤ 25 mm |
| Structure | Double-Chamber | Double-Chamber |
| Material | Silicone | Silicone |
Applications
- Linear architectural lighting
- Facade lighting
- Decorative linear lighting
- Commercial ambient lighting
- Interior accent lighting
